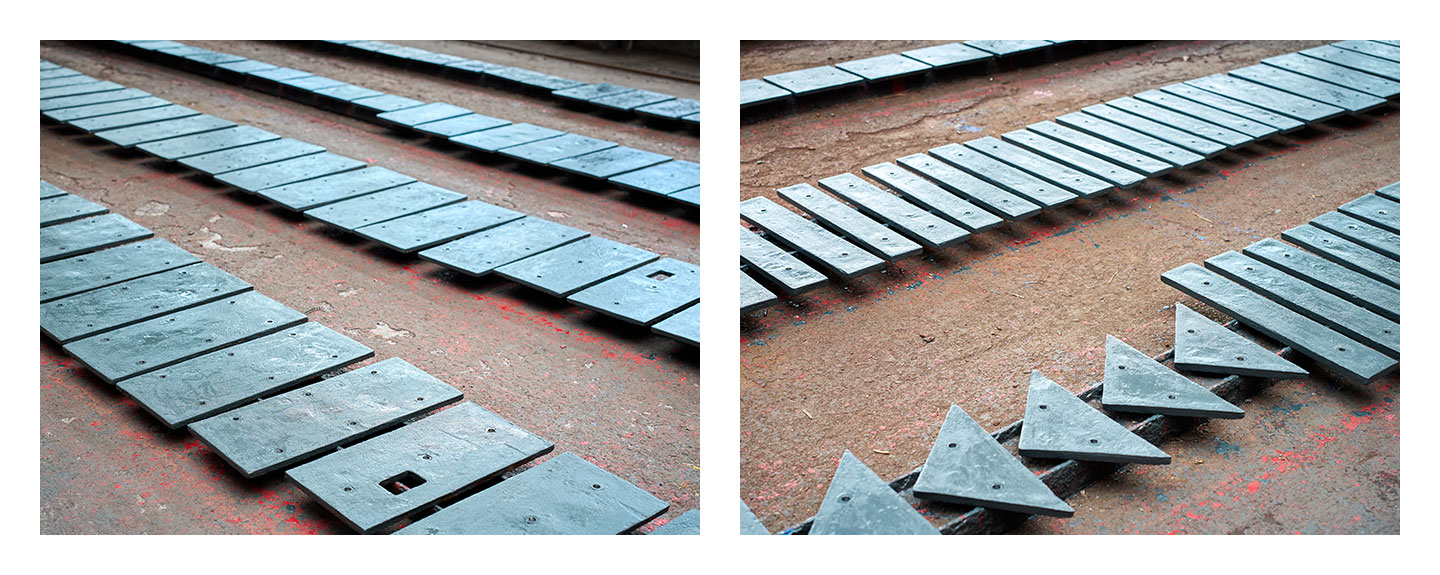

Liner Plate

Use of the product:

Supporting counterattack crusher use, suitable for mines, construction, roads, water conservancy and other fields, used for the crushing operation of all kinds of medium-hard and brittle materials, helping the production of sand and stone aggregates, ore processing, etc., guarding the equipment cavity, and ensuring the smooth and efficient crushing process.

Application scenario:

Liner Plate is an important wear-resistant protective component in mine crushing equipment and material conveying equipment. It is widely used in cone crushers, ball mills, counter impact crushers, silos, chutes and other equipment. It is mainly used to protect the body structure of the equipment from material impact and wear.

In practical applications, the lining plate is usually installed on the inner wall of the crushing chamber or silo to extend the service life of the equipment by forming a wear-resistant protective layer. In the sand and stone aggregate production line, Liner Plate is not only used inside the crushing equipment, but also in the material conveying channel to reduce the cost of equipment maintenance under high wear conditions.

In addition, this component is widely used in mining, cement building materials, metallurgy and power industries. It is especially suitable for continuous production environments with high impact and high wear. It is one of the important wear-resistant accessories to ensure the long-term stable operation of crushing equipment and conveying systems.

FAQ：

Q：What is Liner Plate and what role does it play in all kinds of crushing equipment?

A：Liner Plate is a full series of general protective wear-resistant accessories for crushers, which are divided into many types of subdivision products: jaw breaker shell lining plate, cone breaker frame lining, PF counterattack breaker shell liner, VSI vertical shaft breaker shell liner, ZSW/GZG feeder groove body lining plate. Core role:

1. Isolate ore and sand directly flush the mainframe shell of the equipment to protect the equipment body from being worn out;
2. Buffer the material impact, reduce the vibration fatigue loss of the whole machine, and extend the overhaul cycle of the equipment;
3. Close the lumen of the equipment to prevent dust and gravel from leaking from the gap of the shell, and optimise the sealing effect of the whole machine.

Q：What are the two mainstream wear-resistant materials of Liner Plate, and the difference in adapting working conditions?

A：1. Mn13Cr2 standard high-manganese steel lining plate: strong toughness and cost-effective, suitable for limestone, construction waste, coal gangue and other medium-sized soft and low-wear materials, the first choice for small and medium-sized sand and stone factories and recycling projects; 2. Mn18Cr2 high-chromium high-manganese alloy lining plate: extremely strong processing hardening effect, strong washing resistance, impact resistance, dedicated to granite, basalt, iron ore and other high-hardness hard rock mines, wear-resistant service life is more than 30% higher than Mn13Cr2.

Q：Which Liner Plate to choose for processing granite, river pebbles and other high-hard ores?

A：Priority Mn18Cr2 high chromium and high manganese lining plate. The edges of hard rock gravel are sharp, and the shell of the long-term high-speed washing equipment is very easy to quickly grind out grooves and perforation; the surface of Mn18Cr2 material is automatically hardened after impact, which greatly reduces the replacement frequency and ensures 24-hour continuous production of the mine.

Q：Which lining plate is more cost-effective for limestone and construction waste recycling production lines?

A：Mn13Cr2 standard high-manganese steel lining fully meets the demand. The material hardness is low, the washing wear strength is small, and the procurement cost is lower. It is suitable for township material farms and environmental protection regeneration intermittent production conditions.

Q：Does the full-line equipment Liner Plate always be in stock to support long-term foreign trade bulk supply?

A：PE, HC, PF, VSI, ZSG full series of specifications Mn13Cr2, Mn18Cr2 lining plates have sufficient spot inventory all year round. It has its own complete cast steel production line, stable batch supply throughout the year, supports long-term fixed collection of overseas mines and sand and stone factories, and the annual stocking of agents, and can be packaged and shipped with all kinds of crushed wear-resistant parts.

Q：Do you support the customisation of Liner Plate for non-standard and old imported models?

A：Support drawings, samples and 3D modelling reproduction customisation. It can produce thickened and wear-resistant, special lining plates for the transformation of old equipment. The size tolerance is strictly controlled and perfectly matches all kinds of non-standard crusher shells.
