Jaw Crusher Accessories

Jaw Plate

This product is a special tooth plate for the Star jaw crusher. It is the core wear-resistant accessory of the equipment. It is installed in the crushing cavity of the crusher and cooperates with the moving jaw to complete the material crushing through extrusion. It is suitable for the full series of models of the planet jaw crusher to ensure the stable operation.

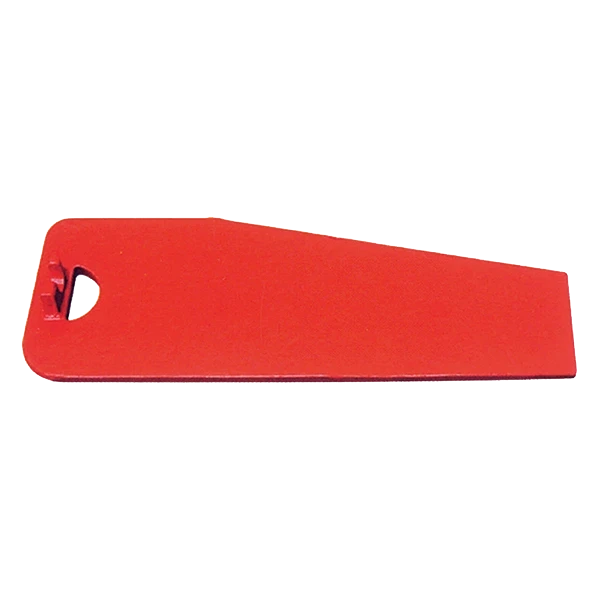

Cheek Plate

The special edge guard of the jaw crusher is the core protective accessory of the equipment. It is installed on both sides of the crushing cavity to protect the equipment cavity and reduce wear, and adapts to the full series of models of the planet jaw crusher.

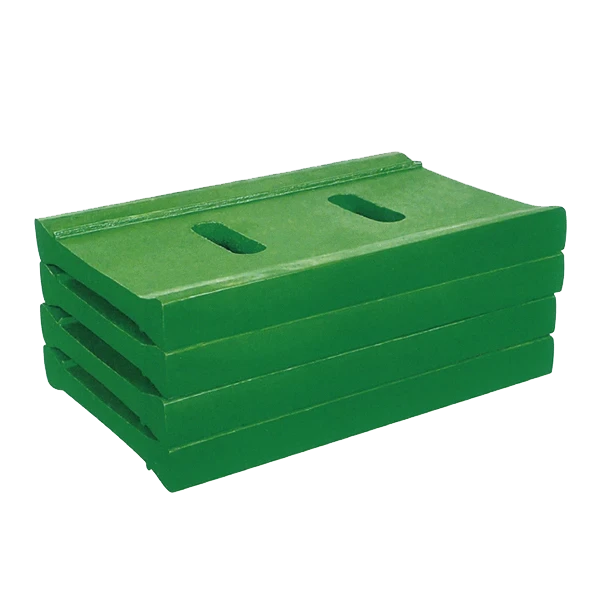

Toggle Plate

The special elbow plate for jaw crusher is the core transmission and protective accessory of the equipment. It connects the moving jaw and the frame, transmits the crushing power, adjusts the discharge port, and at the same time plays a role in overload protection. It is suitable for the full series of models of the star jaw crusher.

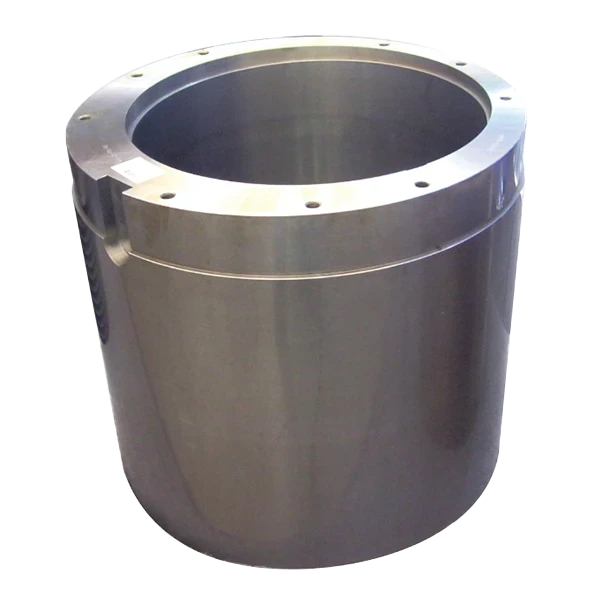

Bushing

The special steel sleeve for jaw crusher is a core auxiliary consumable. It is adapted to the interior of the equipment cavity. It is mainly used to fix and protect the core transmission components, isolate the internal wear of the equipment, connect the operating parts of the equipment, and ensure the stability of the overall structure of the equipment. It is a key auxiliary accessory for the normal operation of the jaw crusher.

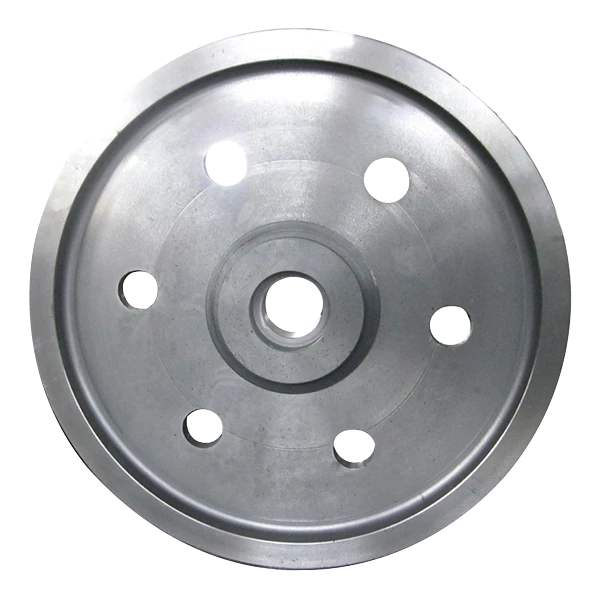

Fly Wheel

The fly channel wheel is the core transmission accessory of the jaw crusher. It is installed at the power end of the equipment and cooperates with the motor and transmission shaft. It is responsible for transmitting power, driving the internal parts of the crushing cavity to realise the material crushing operation, adapting to the full series of jaw crushers, and ensuring the stable operation of the equipment.

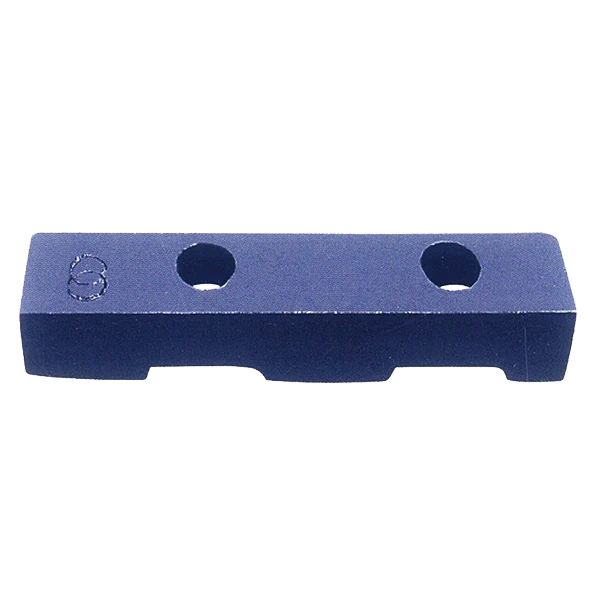

Pressure Block

The special pressure block for jaw crusher is the core fixing accessory of the equipment. It is adapted to the jaw crusher and installed in the relevant parts of the crushing cavity. It is used to fix the wearable accessories such as tooth plate and edge guard plate to prevent the accessories from loosening and shifting during operation, and to ensure the safe and stable operation of the crushing operation.

FAQ

What are the types of Jaw Crusher accessories? Are the accessories of different models common?

The PE/PEX basic model of the same tonnage is only divided into two types of jaw plates: coarse deep cavity and standard medium; the size of jaw plate, moving jaw body and flywheel of different tonnages (such as PE600, PE750, PE900) is completely different; the size of EC and JC imported replica models is independent and cannot be exchanged with domestic PE. Change, you need to provide the complete model parameters when placing an order.

What are the two mainstream materials of jaw plate, edge guard plate and pressure block wear-resistant parts, and are they suitable for working conditions?

1. Mn13Cr2 standard high-manganese steel: moderate toughness, high cost-effectiveness, common to small and medium-sized materials such as limestone, construction waste, bluestone and other medium-sized materials;

2. Mn18Cr2 high chromium high manganese alloy: stronger impact processing hardening, resistant to angular stone washing, specially designed for granite, basalt, iron ore and other high-hard mines, and the wear-resistant life is improved by more than 30%.

Can the deep cavity coarse jaw plate and the standard middle jaw plate be used interchangeable?

Exchange is not recommended. The tooth shape of the deep cavity jaw plate is deeper and the feeding space is larger, which is suitable for coarse crushing of large pieces of raw stone; the teeth of the crushed jaw plate in the standard are shallow and the output is finer, which will cause production capacity decline, uncontrolled discharge particle size, and abnormal wear of the jaw plate.

Do you support customised non-standard and imported special jawbreaking accessories for old models?

Support drawing, sample, 3D scanning modelling reproduction; can be customised to thicken the wear-resistant jaw plate, lengthen/shorten the thrust plate, multi-slot widen the flywheel, and transform the special moving jaw body, and strictly match the original equipment installation hole and external size.

Can the mixed batch be packed and shipped with cones and counter-counterattack broken accessories?

It supports one-stop mixed batch procurement. The jaw-breaking accessories can be combined with cone Mantle/Concave, counterattack Blow Bar, and auxiliary wear-resistant parts to reduce the customer's single-cabinet shipping cost, which is suitable for overseas accessories agents to collect in bulk.

What are the key installation specifications for replacing the jaw plate and pressure block?

1. Clean up the debris on the outer wall of the jaw body of Jaw Stock to ensure that the back of the jaw plate fits perfectly without gaps;
2. The upper and lower pressure blocks are evenly locked diagonally to avoid unilateral loosening and causing the jaw plate to shake;
3. After the assembly is completed for 1–2 hours of no-load operation, check whether the whole machine has abnormal sound and deviation;
4. Strictly control the maximum size of the feed, and prohibit large pieces of stone material that exceeds the specification from entering the crushing cavity.
