Sand Washer

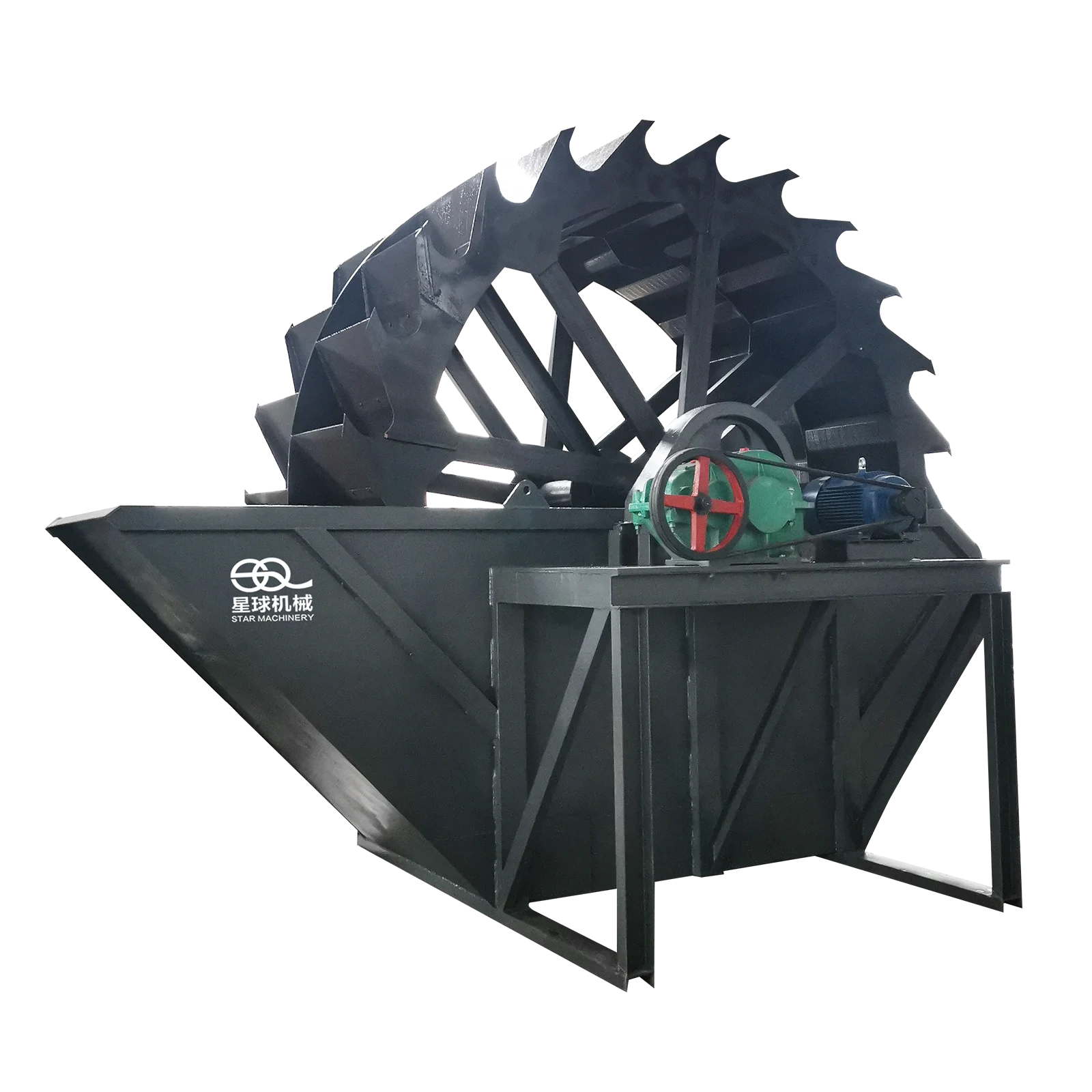

XS series Sand Washer 001

XS Series Sand Washer

XS series sand and stone washing machine is widely used in construction sites, sand and stone factories, hydropower station concrete dam construction sites and other industries. It has the characteristics of high cleaning degree, reasonable structure, large processing capacity and low power consumption. Less sand is lost in the process of sand washing, especially the transmission part of the sand washing machine is isolated from water and sand, so its failure rate is much lower than that of the current commonly used sand washing machine. It is a wise choice for upgrading the domestic sand washing machine industry. It has the advantages of high cleaning rate, low failure rate, durability, novel structure, simple maintenance and so on.

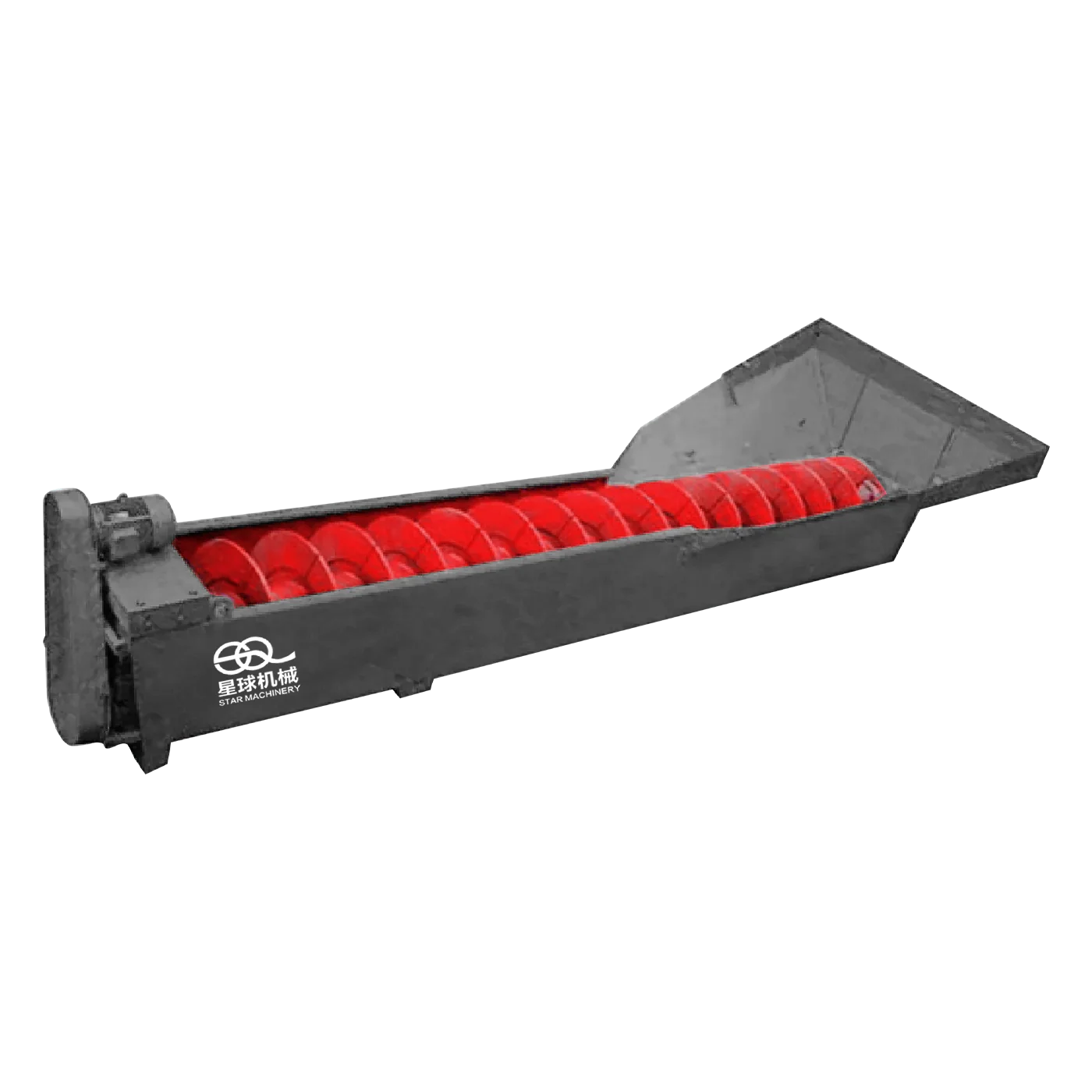

XL series Sand Washer 001

XL Series Sand Washer

This series of products is suitable for the washing, selection, grading and dehydration of construction sites, sand and stone factories, hydropower station concrete dam construction sites, post and telecommunications pole factories need unit sand and "70" sand for casting, glass factory quartz sand and oil well backfill pressure sand. It is suitable for the washing and selection of fine-grained and coarse-grained materials, for construction sand and road construction Sand and stone are still suitable. It can complete sand and stone washing, grading and dehydration, and adapt to fine-grained and coarse-grained materials, especially suitable for the cleaning and treatment of construction sand and road construction sand and stone.

The core difference between XL spiral sand washing machine and XS wheel bucket sand washing machine, how to choose?

1. XL spiral sand washing machine: strong cleaning depth, large processing capacity, can treat 0–40mm sand and stone, high mud content, high viscosity clay raw material is the first choice, the dehydration effect is average, fine sand loss is slightly large; it is suitable for mine hard rock mechanism sand and high mud tailings washing. 2. XS bucket sand washing machine: high recovery rate of fine sand, less loss of fine sand, low water content of finished sand, and less water consumption; suitable for natural river sand, low-sludge boutique mechanism sand, dry powder mortar special sand, preferred for small and medium-sized material farms. Selection logic: raw material soil, large sand and stone particle size → XL spiral; pursue fine sand retention, low water consumption, fine sand → XS bucket.

It is not recommended to use it alone. The sand and stone are first screened by the YK vibrating screen, and the qualified particle size sand is separated and then sent to the sand washing machine for cleaning, so as to avoid the rapid wear of wear-resistant parts caused by large pieces of stone entering the sand washing cavity; only a small simple natural sand field can be operated independently by a single simple sand washing machine.

The standard models of each specification single/double spiral sand washing machine and bucket sand washing machine have sufficient stock all year round; Mn13/Mn18 high manganese steel blades, lining plates and guard plates are in bulk. Own steel structure and cast steel wear-resistant parts production line, stable batch shipment throughout the year, supporting overseas sand and stone factories and agents' annual fixed collection, can support the whole set of crushers, vibrating screens and belt machines for packaging and export.

1. The feed flow rate is too large, and the sand and gravel stay in the sink for cleaning time is insufficient; 2. The water intake is insufficient to fully wash away the clay; 3. The spiral blade is seriously worn out, and the stirring ability is reduced; 4. The silt in the sink is too thick, and the cleaning water environment is cloudy.

1. Large stones and iron blocks are stuck between the blade and the groove, and stop to clean up foreign matter; 2. The bearing lacks oil, the seal is damaged and the mud is worn; 3. Spindle bending deformation and severe wear on one side of the blade lead to dynamic balance failure; 4. The anchor bolt is loose, and the whole machine resonates and shakes.

1. Free production line matching selection, XL/XS model is recommended according to the production capacity of the sand-making machine and the mud content of sand and stone; 2. Provide the installation drawings of the whole machine, inclined installation standards, and counterflow water inflow layout schemes; 3. 7×24 online remote troubleshooting, whole machine operation and maintenance training; 4. Overseas bulk orders with complete English operation and maintenance manuals; 5. Lifetime stable supply of wear-resistant consumables such as spiral blades, trough lining plates, protective plates, etc. for life.
