The special hammer head for the hammer crusher is the core crushing and wearable accessory of the equipment. It is installed on the rotor and realises material crushing through high-speed rotation and impact. It directly determines the crushing efficiency and the particle size of the finished product. It is the core key consumables for the normal operation of the hammer crusher.

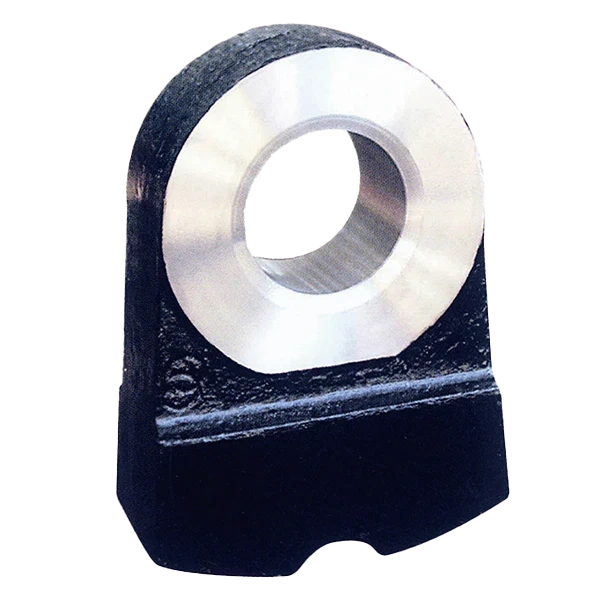

Crusher Hammer, is the core rotating wear-resistant consumable part of the PC/PCZ single-stage heavy hammer crusher, which is fixed on the rotor plate through the pin shaft. When the equipment is running at high speed, the hammer head hammers, hits and grinds the feed stone at high speed, and completes coarse crushing + fine crushing at one time; at the same time, it protects the rotor disk body, which directly determines the failure of the hammer, the discharge particle size and the operation and maintenance cost of the whole machine.
The full series is suitable for PC, PCZ and PCX single-stage heavy hammer crushers, covering small mobile hammer breaking and large and medium-sized heavy hammer coarse crushing equipment; it is divided into ordinary single-head hammer head, thickened heavy hammer, double composite high-chromium hammer head, and can be supplied with complete sets of hammering liners and grates.
Mn13Cr2 standard high-manganese steel hammer head is fine. The material hardness is low, the impact wear is small, and the procurement cost is lower, which fully meets the intermittent crushing needs of township material farms and environmental protection regeneration projects.
1. The higher the hardness of the ore, the faster the hammer head is washed and worn out; 2. Non-breakable metals such as steel bars and iron blocks enter the crushing cavity, directly causing the hammer head to crack and notch; 3. The feeding material is concentrated on one side for a long time, the hammer head continues to hit locally, and the one-sided quick wear; 4. The grate is blocked, the discharge is not smooth, and the material is repeatedly ground in the crushing cavity to aggravate the wear; 5. The equipment is overloaded at full load for 24 hours for a long time.
Support drawing, sample, 3D modelling reproduction customisation, can produce thickened heavy-duty, lengthened, bimetallic reinforced hammer head, old modified hammer crushing special hammer head, pin shaft hole, external size strictly controlled, perfectly matching all kinds of non-standard hammer crushers.
Globally, we are looking for exclusive regional agents of wear-resistant accessories and crushing equipment, providing step-by-step discounts, a full set of English model adaptation parameter tables, product selection manuals, and priority production and delivery. The hammer head is a high-frequency consumable part for hammering. The repurchase is stable, and the demand for the overseas small and medium-sized sand, stone and solid waste market is huge.
